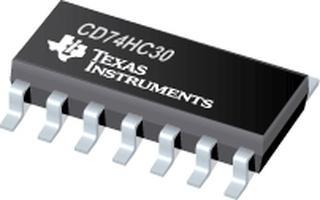

CD74HC30PWG4
Manufacturer
Texas Instruments
Description
High Speed CMOS Logic 8-Input NAND Gate 14-TSSOP -55 to 125
Product Attributes
Type
Case/Package
Contact Plating
High Level Output Current
Lead Free
Logic Function
Low Level Output Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Circuits
Number of Elements
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Output Current
Propagation Delay
Quiescent Current
Radiation Hardening
RoHS
Turn-On Delay Time
Weight
Description
TSSOP
Gold
5.2 mA
Lead Free
NAND
5.2 mA
125 °C
6 V
-55 °C
2 V
Surface Mount
1
1
1
1
8
8
1
1
14
5.2 mA
22 ns
2 µA
No
Compliant
28 ns
57.209338 mg
₹163.78
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹163.78
₹163.78
10
₹104.13
₹1041.27
25
₹104.15
₹2603.63
50
₹92.95
₹4647.28
100
₹76.38
₹7638.42
500
₹76.39
₹38193.93
1000
₹63.11
₹63107.55
