CHPHT0805K1004FGT
Manufacturer
Vishay
Description

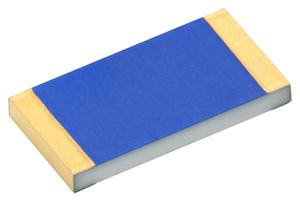

CHPHT Series 0805 0.02 W 1 MOhm 1 % 100 ppm/C SMT Thick Film Chip Resistor
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Height
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Terminals
Number of Terminations
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Width
Working Voltage
Description
0805
0805
2012
Thick Film
Gold
380 µm
Lead Free
1.8542 mm
Production (Last Updated: 9 months ago)
245 °C
20 mW
-55 °C
Surface Mount
2
2
20 mW
20 mW
No
Yes
1 MΩ
Compliant
100 ppm/°C
SMD/SMT
1 %
150 V
1.25 mm
150 V
₹767.68
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹767.68
₹767.68
10
₹567.48
₹5674.83
25
₹567.45
₹14186.16
50
₹491.48
₹24574.15
100
₹378.24
₹37824.27
500
₹455.26
₹227629.13
