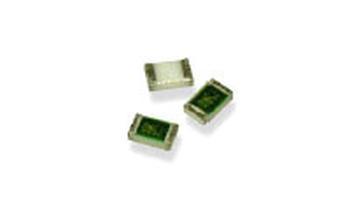

CPF0402B2K7E1

Manufacturer

TE Connectivity

Description

Fixed Resistor, Thin Film, 0.063W, 2700ohm, 25V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Case Code (Imperial)

Case Code (Metric)

China RoHS

Composition

Depth

ELV

Height

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Operating Temperature

Military Standard

Min Operating Temperature

Mount

Number of Pins

Number of Resistors

Number of Terminals

Number of Terminations

Operating Supply Voltage

Power Dissipation

Power Rating

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Temperature Coefficient

Termination

Tolerance

Voltage Rating

Voltage Rating (DC)

Weight

Width

Working Voltage

Description

0402

0402

1005

Compliant

Thin Film

500 µm

Compliant

300 µm

Lead Free

1 mm

Production (Last Updated: 1 week ago)

ACTIVE (Last Updated: 1 week ago)

155 °C

Not

-55 °C

Surface Mount

2

1

2

2

25 V

63 mW

63 mW

No

Yes

2.7 kΩ

Compliant

8533210045, 8533210080, 8533210080|8533210080|8533210080|8533210080|8533210080

25 ppm/°C

Solder

0.1 %

25 V

50 V

652.039032 µg

500 µm

25 V

₹21.45

In Stock

Quantity
Shipment
delivery

Ships in 7-10 days

Add to Listarrow_icon

Quantity

Unit Price

Ext. Price

10

₹19.12

₹191.24

25

₹19.09

₹477.17

50

₹16.71

₹835.67

100

₹15.49

₹1549.36

500

₹14.87

₹7435.29

1000

₹13.61

₹13608.80
