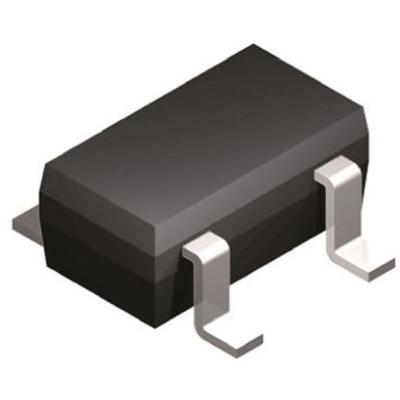

CPH5524-TL-E
Manufacturer
onsemi
Description
Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 50V 3A 380MHz 1.2W Sur
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Element Configuration
Emitter Base Voltage (VEBO)
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
RoHS
Schedule B
Transition Frequency
Width
Description
SOT-23-5
Non-Compliant
100 V
50 V
240 mV
50 V
Dual
6 V
380 MHz
900 µm
200
Lead Free
2.9 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
50 V
3 A
390 MHz
150 °C
1.2 W
-55 °C
2
5
5
Tape and Reel
NPN, PNP
1.2 W
Compliant
8541290080
380 MHz
1.6 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹73.80
Total Price
₹147.61
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹147.61
₹147.61
10
₹49.35
₹493.51
25
₹49.39
₹1234.65
50
₹49.39
₹2469.31
100
₹33.02
₹3301.60
500
₹25.79
₹12892.51
1000
₹23.41
₹23405.52
