CPI-2416-100T
Manufacturer
Same Sky (Formerly CUI Devices)
Description

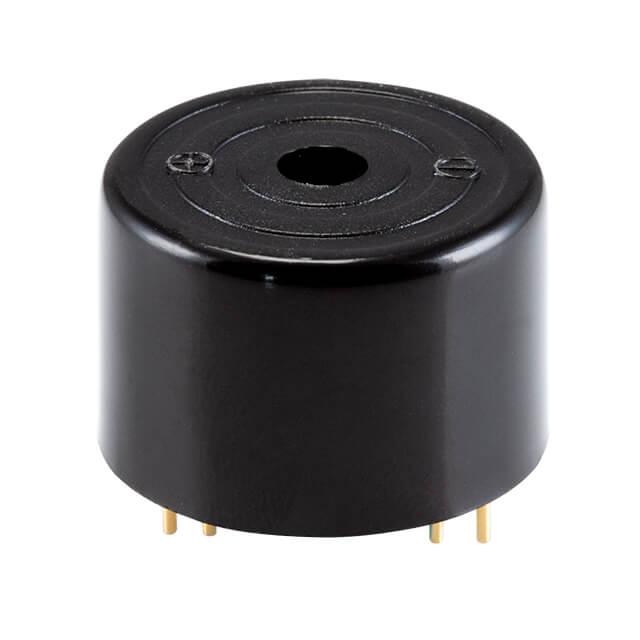

Buzzers & Audio Indicators - Board Mount buzzer, 24 mm x 16 mm deep, P, 12 VDC, 100 dB, Through Hole, Multitone, Audio Indicator
Datasheet
DownloadProduct Attributes
Type
Driver Circuitry
Input
Voltage - Rated
Voltage Rating
Frequency
Technology
Operating Mode
Sound Pressure Level (SPL)
Operating Supply Current
Port Location
Max Operating Temperature
Mounting Type
Termination
Size / Dimension
Height - Seated (Max)
Description
Indicator, Internally Driven
DC
12 V
4 ~ 18V
3.4kHz
Piezo
Single Tone, Pulse, Fast; Pulse, Slow
100dB @ 12V, 10cm
25mA
Top
-30°C ~ 85°C
Through Hole
PC Pins
0.965" Dia (24.50mm)
0.650" (16.50mm)
₹706.03
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹706.03
₹706.03
10
₹600.38
₹6003.75
25
₹545.68
₹13642.05
50
₹498.45
₹24922.27
100
₹472.34
₹47233.92
500
₹401.49
₹200745.49
1000
₹386.58
₹386576.96
Product Attributes
Type
Driver Circuitry
Input
Voltage - Rated
Voltage Rating
Frequency
Technology
Operating Mode
Sound Pressure Level (SPL)
Operating Supply Current
Port Location
Max Operating Temperature
Mounting Type
Termination
Size / Dimension
Height - Seated (Max)
Description
Indicator, Internally Driven
DC
12 V
4 ~ 18V
3.4kHz
Piezo
Single Tone, Pulse, Fast; Pulse, Slow
100dB @ 12V, 10cm
25mA
Top
-30°C ~ 85°C
Through Hole
PC Pins
0.965" Dia (24.50mm)
0.650" (16.50mm)
