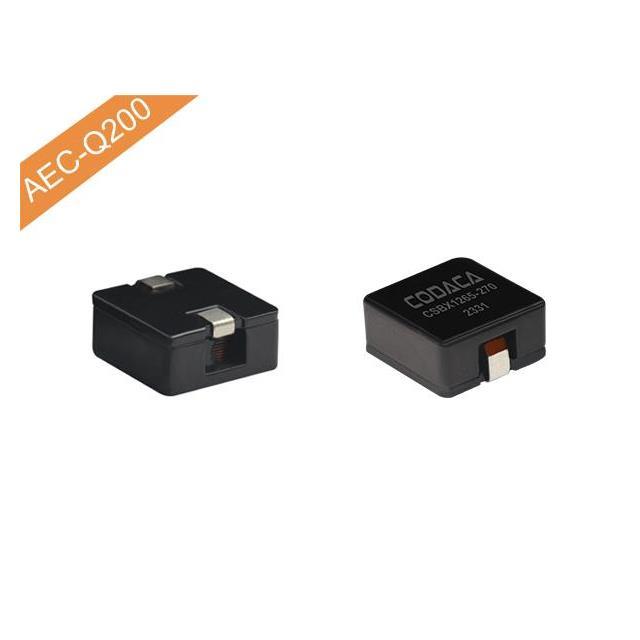

CSBX1265-270M
Manufacturer
Codaca
Description
27 H Shielded Wirewound Inductor 6.5 A 27.5mOhm Max 2-SMD High Current, Low Loss
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Ratings
Max Operating Temperature
Inductance Frequency - Test
Features
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Wirewound
Metal Composite
27 µH
±20%
6.5 A
9.5A
Shielded
27.5mOhm Max
AEC-Q200
-55°C ~ 150°C
100 kHz
High Current, Low Loss
Surface Mount
2-SMD
1265
0.543" L x 0.504" W (13.80mm x 12.80mm)
0.244" (6.20mm)
₹328.00
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹328.00
₹328.00
10
₹269.78
₹2697.80
25
₹249.61
₹6240.20
50
₹235.34
₹11767.00
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Ratings
Max Operating Temperature
Inductance Frequency - Test
Features
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Wirewound
Metal Composite
27 µH
±20%
6.5 A
9.5A
Shielded
27.5mOhm Max
AEC-Q200
-55°C ~ 150°C
100 kHz
High Current, Low Loss
Surface Mount
2-SMD
1265
0.543" L x 0.504" W (13.80mm x 12.80mm)
0.244" (6.20mm)
