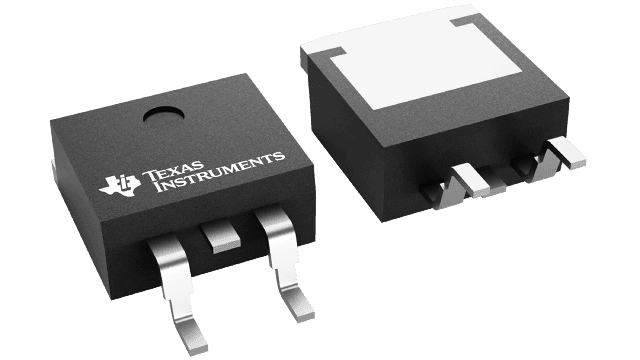

CSD19535KTT
Manufacturer
Texas Instruments
Description
100-V, N channel NexFET power MOSFET, single D2PAK, 3.4 mOhm 2-DDPAK/TO-263 -55 to 175
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Packaging
Rds On Max
Rise Time
RoHS
Schedule B
Thickness
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
TO-263
Tin
200 A
100 V
Single
15 ns
20 V
4.7 mm
7.93 nF
Contains Lead
10.16 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
175 °C
300 W
-55 °C
Surface Mount
2
Tape & Reel (TR)
3.4 mΩ
18 ns
Compliant
8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|85
4.4 mm
21 ns
9 ns
8.41 mm
₹458.42
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹458.42
₹458.42
10
₹302.50
₹3024.99
25
₹302.54
₹7563.39
50
₹302.54
₹15126.78
100
₹236.93
₹23693.01
500
₹236.93
₹118465.05
