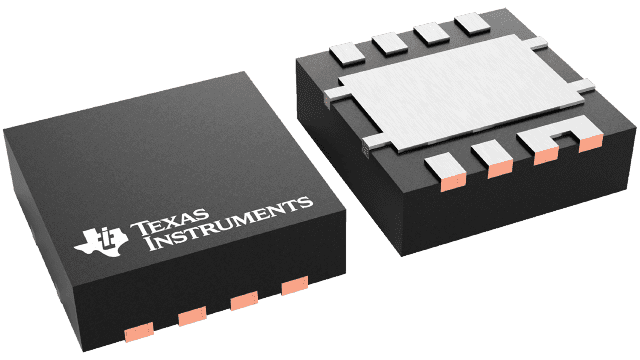

CSD86330Q3D
Manufacturer
Texas Instruments
Description
TEXAS INSTRUMENTS CSD86330Q3D Dual MOSFET, Dual N Channel, 20 A, 25 V, 4.6 ohm, 4.5 V, 1.4 V
Datasheet
DownloadProduct Attributes
Type
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Voltage (Vdss)
Element Configuration
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
RoHS
Schedule B
Thickness
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
Tin
20 A
25 V
25 V
Dual
8 V
1.6 mm
920 pF
Contains Lead
3.3 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
150 °C
6 W
-55 °C
Surface Mount
1.4 V
8
Digi-Reel®
6 W
No
9.6 mΩ
No
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
1.5 mm
1.4 V
15.8 ns
5.3 ns
3.3 mm
₹154.63
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹154.63
₹154.63
10
₹127.28
₹1272.77
25
₹127.29
₹3182.37
50
₹127.28
₹6363.82
100
₹107.70
₹10769.55
500
₹105.60
₹52801.90
1000
₹95.95
₹95946.90
