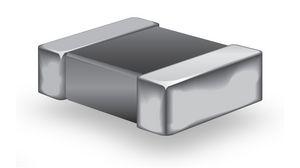

CVH252009-2R2M
Manufacturer
Bourns
Description
Ind Power Chip Shielded Multi-Layer 2.2uH 20% 1MHz Ferrite 1.3A 1008 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Contact Plating
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
REACH SVHC
RoHS
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
1008
1008
2520
Tin
Ferrite
1.3 A
1.3 A
80 mΩ
2.2 mm
990.6 µm
2.2 µH
20 %
2.4892 mm
1.3 A
125 °C
Not
-55 °C
Surface Mount
No
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
40 MHz
Shielded
SMD/SMT
1 MHz
20 %
2.0066 mm
₹20.68
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹17.57
₹175.68
25
₹17.53
₹438.29
50
₹17.44
₹872.00
100
₹15.04
₹1504.26
500
₹13.53
₹6765.01
1000
₹12.84
₹12841.11
