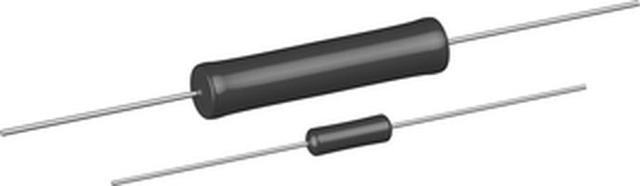

CW02B22R00JS70
Manufacturer
Vishay
Description
Fixed Resistor, Wire Wound, 3W, 22ohm, 8.124V, 5% +/-Tol, 30ppm/Cel, Through Hole Mount
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Contact Plating
Diameter
Features
Lead Diameter
Lead Free
Lead Length
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Terminals
Number of Terminations
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Termination
Tolerance
Voltage Rating (DC)
Working Voltage
Description
Axial
Wirewound
Lead, Tin
4.78 mm
Moisture Resistant
813 µm
Contains Lead
38.1 mm
15.8 mm
Production (Last Updated: 9 months ago)
250 °C
3.75 W
Not
-65 °C
Through Hole
2
2
3 W
No
Yes
22 Ω
Non-Compliant
30 ppm/°C
Axial
5 %
8.12 V
8.124 V
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
