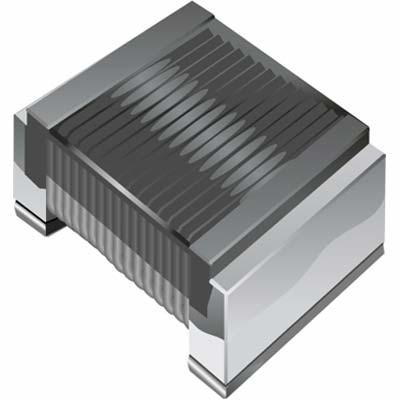

CW252016-2R2J
Manufacturer
Bourns
Description
Inductor RF Wirewound 2.2uH 5% 7.96MHz 28Q-Factor Ferrite 0.28A 2.8Ohm DCR 1008 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Conductor Material
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Q Factor
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
1008
1008
2520
Wirewound
Copper
Alumina, Ferrite
250 mA
250 mA
2.8 Ω
2.2 mm
1.5748 mm
1.8034 mm
2.2 µH
5 %
2.4892 mm
250 mA
125 °C
Not
-40 °C
Surface Mount
2
Cut Tape
25
No
No
Compliant
8504500000
160 MHz
Unshielded
SMD/SMT
7.9 MHz
5 %
2.0066 mm
In Stock
Quantity
MOQ : 4
Minimum Qty : 4
Per Unit Price
₹25.58
Total Price
₹102.33
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹102.34
₹102.34
10
₹21.79
₹217.90
25
₹21.77
₹544.32
50
₹21.81
₹1090.40
100
₹18.42
₹1842.03
500
₹18.41
₹9206.64
1000
₹17.46
₹17460.50
