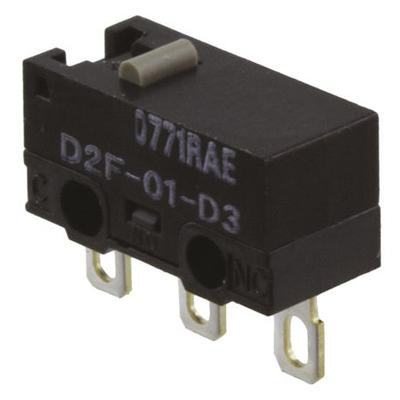

D2F-01F-D3
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Pin Plunger 0.1A 30VDC 0.74N Screw Mount Solder
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Current Rating
Contact Material
Contact Plating
Current Rating
Depth
Differential Travel
Electrical Life
Height
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Operating Position
Overtravel
Pretravel
Ratings
REACH SVHC
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (DC)
Description
100
100 mA
Gold
Gold
100 mA
5.8 mm
127 µm
30 kcycles
6.5 mm
12.8 mm
Production (Last Updated: 7 months ago)
100 mA
65 °C
30 V
1 Mcycles
-25 °C
Chassis Mount
2
740 mN
5.5118 mm
254 µm
500 µm
IP40
Yes
Compliant
8536509040, 8536509040|8536509040|8536509040|8536509040|8536509040
IP40
On-Mom
Solder
SPDT
30 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹104.04
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹100.66
₹1006.57
25
₹100.69
₹2517.32
50
₹100.68
₹5033.76
100
₹100.47
₹10047.07
500
₹100.36
₹50182.00
1000
₹100.36
₹100364.00
