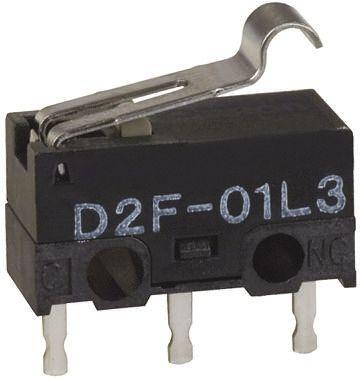

D2F-01FL3-D
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever Solder 0.1A 30VDC 0.39N Screw Mount
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Ambient Temperature Range High
Case/Package
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Ratings
REACH SVHC
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (DC)
Description
Stainless Steel
85 °C
100
100 mA
Gold
Gold
100 mΩ
100 mA
5.8 mm
457.2 µm
30 kcycles
6.5 mm
Lead Free
12.8 mm
100 kcycles
Production (Last Updated: 7 months ago)
100 mA
65 °C
30 V
1 Mcycles
-25 °C
Chassis Mount, Screw, Solder
2
740 mN
8.509 mm
Straight
508 µm
IP40
Unknown
Compliant
8536509040, 8536509040|8536509040|8536509040|8536509040|8536509040
IP40
On-Mom
Solder
SPDT
30 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹371.69
Total Price
₹371.69
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹371.69
₹371.69
10
₹261.25
₹2612.47
25
₹261.32
₹6532.95
50
₹261.30
₹13065.02
100
₹233.58
₹23358.40
500
₹210.11
₹105057.20
1000
₹206.91
₹206914.17
