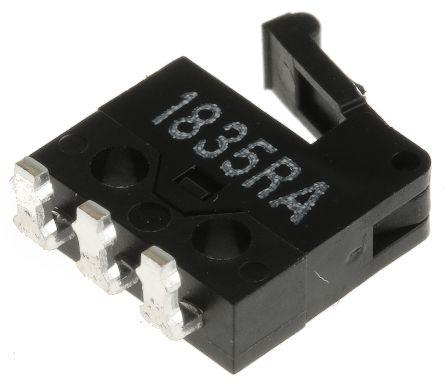

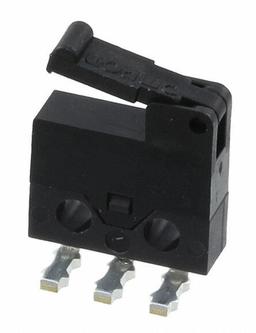

D2MQ-4L-1-R
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Hinge Leaf Lever PC Pins 0.5A 30VDC 0.39N Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Differential Travel
Electrical Life
Height
Insulation Resistance
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Pretravel
Ratings
REACH SVHC
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (DC)
Weight
Width
Description
500 mA
Silver
Silver
100 mΩ
500 mA
11.8 mm
685.8 µm
10 kcycles
2.7 mm
100 MΩ
8.2 mm
Production (Last Updated: 7 months ago)
500 mA
70 °C
30 V
30 kcycles
-15 °C
Chassis Mount, Screw, Through Hole
2
390 mN
7.112 mm
Right Angle
279.4 µm
2.1 mm
IP40
Yes
Compliant
8536509040, 8536509040|8536509040|8536509040|8536509040|8536509040
IP40
On-Mom
Solder
SPDT
30 V
300 mg
2.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹256.09
Total Price
₹256.09
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹256.09
₹256.09
10
₹232.53
₹2325.26
25
₹232.51
₹5812.70
50
₹232.33
₹11616.51
100
₹232.32
₹23232.13
500
₹232.32
₹116159.75
