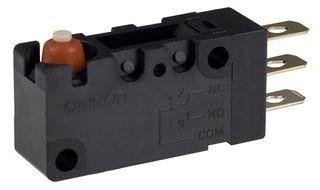

D2VW-01L1-1HS
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Hinge Lever 0.1A 125VAC 30VDC 1.18N Screw Mount Solder
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Ambient Temperature Range High
Approvals
Case/Package
Contact Current Rating
Contact Material
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Poles
Operating Force
Operating Position
Orientation
Overtravel
Pretravel
Ratings
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
Stainless Steel
85 °C
IEC
100
100 mA
Gold
50 mΩ
125 V
100 mA
10.3 mm
787.4 µm
1 Mcycles
33 mm
Lead Free
15.9 mm
1 Mcycles
Production (Last Updated: 7 months ago)
100 mA
90 °C
125 V
30 V
10 Mcycles
-40 °C
Chassis Mount, Panel, Screw, Solder
1
1.18 N
15.24 mm
Straight
1.5748 mm
4 mm
Dust Tight, IP50, IP67, Waterproof
Compliant
8536509040, 8536509040|8536509040|8536509040|8536509040|8536509040
IP50
On-Mom
Solder
SPDT
125 V
30 V
33 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹739.81
Total Price
₹739.81
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹739.81
₹739.81
10
₹581.27
₹5812.70
25
₹581.29
₹14532.20
50
₹580.59
₹29029.27
100
₹538.62
₹53862.40
500
₹503.83
₹251916.14
1000
₹503.83
₹503833.17
