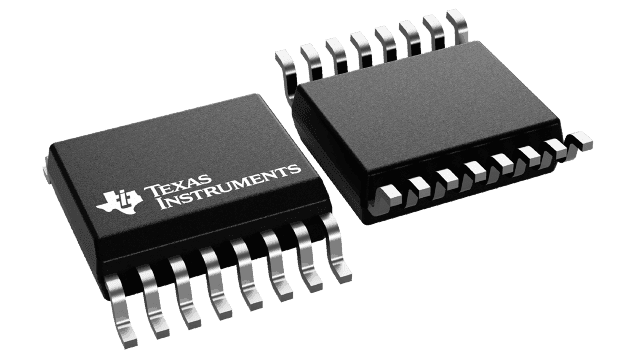

DAC1220E
Manufacturer
Texas Instruments
Description
20-Bit Delta-Sigma Low Power Digital-To-Analog Converter 16-SSOP -40 to 85
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Conversion Rate
Differential Nonlinearity
Height
Integral Nonlinearity (INL)
Interface
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Bits
Number of Channels
Number of Converters
Number of DAC Channels
Number of Pins
Operating Supply Voltage
Output Type
Packaging
Polarity
Power Consumption
Radiation Hardening
REACH SVHC
Resolution
RoHS
Sampling Rate
Schedule B
Settling Time
Supply Type
Thickness
Weight
Width
Description
SSOP
Gold
500 sps
1 LSB
1.75 mm
1 LSB
SPI
4.9 mm
Production (Last Updated: 3 days ago)
ACTIVE (Last Updated: 3 days ago)
85 °C
5.25 V
-40 °C
4.75 V
460 µA
20
1
1
1
16
5 V
Voltage
Bulk
Unipolar
2.5 mW
No
No SVHC
2.5 B
Compliant
500 sps
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
2 ms
Analog, Digital
1.5 mm
73.793809 mg
3.9 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹2510.21
Total Price
₹2510.21
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹2510.21
₹2510.21
10
₹2013.06
₹20130.60
25
₹2013.04
₹50326.05
50
₹1776.91
₹88845.31
100
₹1721.44
₹172143.79
500
₹1721.44
₹860720.70
