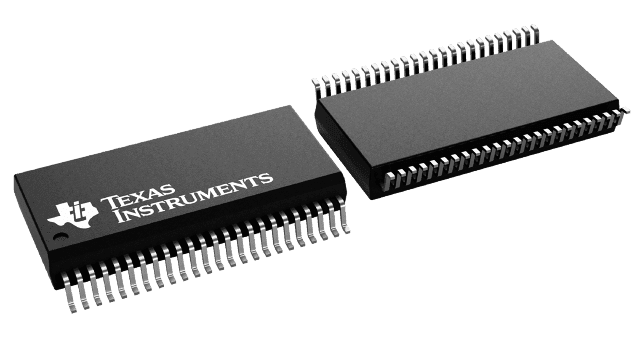

DAC7744E
Manufacturer
Texas Instruments
Description
IC Quad/par 16-BIT D/a 48-SSOP / Dac 4-CH R-2R 16-BIT 48-PIN SSOP Tube
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Conversion Rate
Differential Nonlinearity
Dual Supply Voltage
Height
Integral Nonlinearity (INL)
Interface
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Number of Bits
Number of Channels
Number of Converters
Number of DAC Channels
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Type
Packaging
Polarity
Power Consumption
Radiation Hardening
REACH SVHC
Resolution
RoHS
Sampling Rate
Schedule B
Settling Time
Supply Type
Thickness
Weight
Width
Description
SSOP
Gold
100 ksps
3 LSB
5 V
2.79 mm
3 LSB
Parallel
15.88 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
85 °C
15.75 V
-40 °C
4.75 V
16
4
4
4
4
48
15 V
Voltage
Bulk
Bipolar, Unipolar
50 mW
No
No
2 B
Compliant
100 ksps
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
10 µs
Dual
2.59 mm
600.301152 mg
7.49 mm
₹9513.25
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹9513.25
₹9513.25
10
₹7960.59
₹79605.91
25
₹7968.48
₹199211.97
50
₹7578.84
₹378941.76
