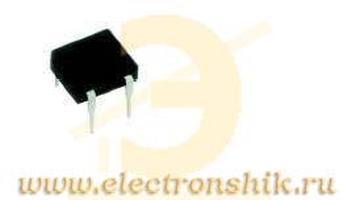

DB107-BP

Manufacturer

MCC

Description

Diode, Bridge Rectifier, Vr 1000V, If 1A, Pkg DB-1, Config Single Phase, Vf 1.1V

Datasheet

download datasheetDownload

Product Attributes

Type

Average Rectified Current

Capacitance

Current

Current Rating

Forward Current

Forward Voltage

Height

Lead Free

Length

Max Forward Surge Current (Ifsm)

Max Operating Temperature

Max Repetitive Reverse Voltage (Vrrm)

Max Reverse Leakage Current

Max Surge Current

Min Operating Temperature

Mount

Number of Elements

Number of Pins

Output Current

Packaging

Peak Non-Repetitive Surge Current

Peak Reverse Current

Radiation Hardening

RoHS

Schedule B

Voltage

Voltage Rating (DC)

Width

Description

1 A

25 pF

1 A

1 A

1 A

1.1 V

3.3 mm

Lead Free

8.51 mm

50 A

125 °C

1 kV

10 µA

50 A

-55 °C

Through Hole

1

4

1 A

Bulk

50 A

10 µA

No

Compliant

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

1 kV

1 kV

6.5 mm

In Stock

Quantity

MOQ : 1

Minimum Qty : 1

decrement quantity
increment quantity

Per Unit Price

₹106.44

Total Price

₹106.44

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹106.44

₹106.44

10

₹49.23

₹492.29

25

₹49.26

₹1231.60

50

₹49.19

₹2459.65

100

₹40.75

₹4074.88

500

₹33.85

₹16926.62

1000

₹28.09

₹28087.74
