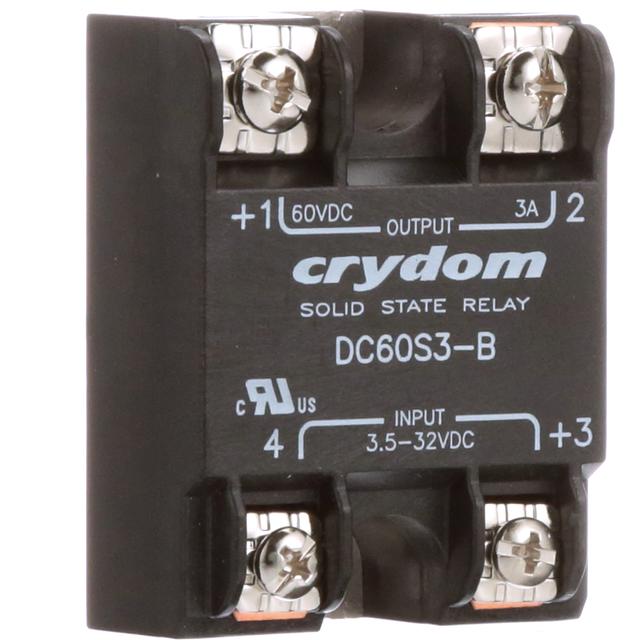

DC60S3-B
Manufacturer
Sensata
Description
Relay; SSR; Gen Purp; SPST-NC; Cur-Rtg 3A; Ctrl-V 3.5-32DC; Vol-Rtg 3-60DC; Pnl-Mnt
Datasheet
DownloadProduct Attributes
Type
Approvals
Current Rating
Data Polarity
Height
Input Current
Insulation Resistance
Isolation Voltage
Lead Free
Leakage Current
Length
Load Current
Max Length
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Max Supply Voltage (DC)
Max Surge Current
Max Voltage Rating (DC)
Min Operating Temperature
Min Supply Voltage
Min Supply Voltage (DC)
Mount
Number of Elements
Number of Pins
Operating Supply Voltage
Output Current
Output Voltage
Radiation Hardening
REACH SVHC
Relay Type
RMS Current (Irms)
RoHS
Termination
Throw Configuration
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
CE, CSA, UL
3 A
DC
23 mm
2.2 mA
1 GΩ
4 kV
Lead Free
300 µA
58.4 mm
3 A
58.4 mm
80 °C
3 A
60 V
60 V
60 V
6 A
32 V
-30 °C
3 V
3 V
Chassis Mount, Panel, Screw
1
4
60 V
3 A
60 V
No
Yes
Relay
3 A
Compliant
Screw
SPST
100 µs
300 µs
60 V
45.7 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹4184.57
Total Price
₹4184.57
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹4184.57
₹4184.57
10
₹3985.75
₹39857.50
25
₹3985.75
₹99643.75
50
₹3985.77
₹199288.39
100
₹3804.45
₹380445.11
