Manufacturer
Renesas
Description

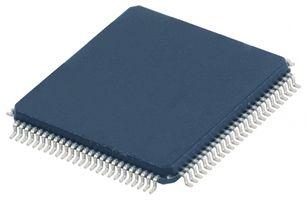

MCU 32-bit SH-2 RISC 256KB Flash 3.3V/5V 100-Pin TQFP Tray
Datasheet
Type
Access Time
Address Bus Width
Ambient Temperature Range High
Case/Package
China RoHS
Core Architecture
Data Bus Width
Density
Frequency
Height
Interface
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of A/D Converters
Number of ADC Channels
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of PWM Channels
Number of Timers/Counters
Number of UART Channels
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Termination
Width
Description
80 µs
25 b
85 °C
TQFP
Compliant
SH-2
16 b
2 Mb
80 MHz
1.2 mm
I2C, Parallel, SCI, UART
Lead Free
14 mm
NRND (Last Updated: 4 months ago)
NOT RECOMMENDED FOR NEW DESIGNS (Last Updated: 4 months ago)
80 MHz
85 °C
5.5 V
256 kB
FLASH
-40 °C
3 V
Surface Mount
1
8
1
65
100
65
24
3
4
Internal
DMA, POR, PWM, WDT
No
16 kB
No
Compliant
SMD/SMT
14 mm
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
