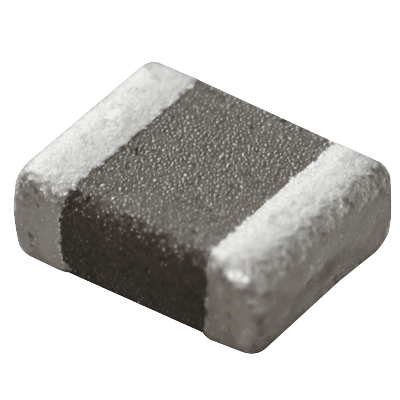

DFE252012P-2R2M=P2
Manufacturer
Murata
Description
Inductor Power Shielded Wirewound 2.2uH 20% 1MHz Metal 2.2A 0.084Ohm DCR 1008 Standard
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Series Resistance
Shielding
Test Frequency
Tolerance
Width
Description
1008
1008
2520
Wirewound
Ferrite
2.2 A
84 mΩ
2 mm
1.2 mm
990.6 µm
2.2 µH
20 %
Lead Free
2.4892 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
2.2 A
125 °C
-40 °C
Surface Mount
2.2 A
Compliant
3 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
84 mΩ
Shielded
1 MHz
20 %
2.0066 mm
In Stock
Quantity
MOQ : 4
Per Unit Price
₹29.34
Total Price
₹117.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.38
₹117.38
10
₹17.70
₹176.95
25
₹17.71
₹442.82
50
₹16.13
₹806.64
100
₹14.93
₹1492.97
500
₹14.91
₹7453.27
1000
₹13.65
₹13651.89
