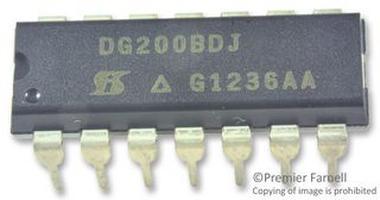

DG200BDJ
Manufacturer
Vishay
Description
Monolithic Dual SPST Cmos Analog Switch SPST, 2 Func, 1 Channel, Cmos, PDIP14
Datasheet
DownloadProduct Attributes
Type
Case/Package
Drain to Source Resistance
Dual Supply Voltage
Height
Height - Seated (Max)
Length
Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Max Power Dissipation
Max Supply Current
Max Supply Voltage
Min Dual Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
On-State Resistance
Operating Supply Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Supply Type
Terminal Pitch
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description
PDIP
70 Ω
15 V
3.81 mm
5.08 mm
18.285 mm
Obsolete (Last Updated: 9 months ago)
22 V
85 °C
470 mW
50 µA
36 V
7 V
-40 °C
13 V
Through Hole
1
2
2
2
14
14
85 Ω
15 V
470 mW
No
Unknown
85 Ω
Non-Compliant
Dual
2.54 mm
425 ns
1 µs
1.620005 g
7.62 mm
Out of Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹263.16
Total Price
₹263.16
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹263.16
₹263.16
10
₹200.67
₹2006.68
25
₹200.67
₹5016.70
50
₹188.51
₹9425.63
100
₹179.41
₹17940.69
500
₹165.42
₹82711.00
1000
₹158.36
₹158360.00
