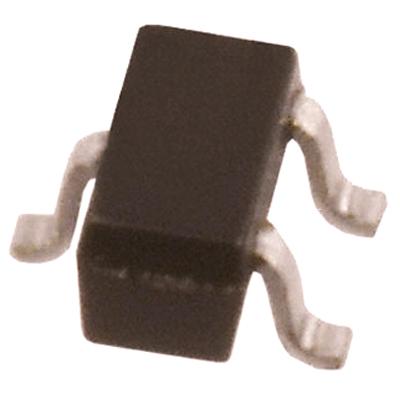

DMG1013T-7
Manufacturer
Diodes Inc.
Description
P-Channel 20 V 0.7 Ohm 0.27 W Enhancement Mode Mosfet - SOT-523
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Number of Terminals
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description
SOT-523
Compliant
Tin
460 mA
-20 V
700 mΩ
-20 V
Single
20.7 ns
6 V
900 µm
59.76 pF
Lead Free
1.7 mm
Production (Last Updated: 7 months ago)
150 °C
150 °C
270 mW
20 V
-55 °C
Surface Mount
1
1
3
3
270 mW
No
700 mΩ
Yes
700 mΩ
8.1 ns
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
-1 V
28.4 ns
5.1 ns
2.012816 mg
850 µm
In Stock
Quantity
MOQ : 7
Per Unit Price
₹16.01
Total Price
₹112.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.04
₹112.04
10
₹10.75
₹107.50
25
₹8.27
₹206.74
50
₹8.27
₹413.48
100
₹4.76
₹475.72
500
₹4.76
₹2378.61
1000
₹4.38
₹4376.64
