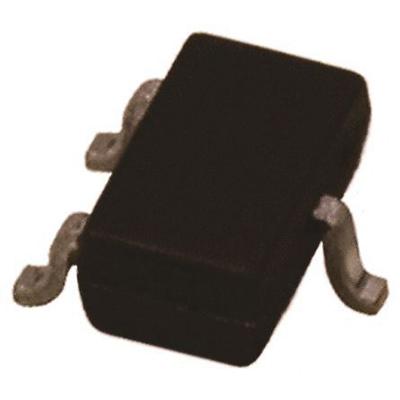

DMN2004WK-7
Manufacturer
Diodes Inc.
Description
Trans MOSFET N-CH 20V 0.54A Automotive 3-Pin SOT-323 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Rds On Max
Resistance
RoHS
Schedule B
Voltage Rating (DC)
Weight
Width
Description
SOT-323
Tin
540 mA
540 mA
20 V
550 mΩ
20 V
Single
8 V
1 mm
150 pF
Lead Free
2.15 mm
150 °C
200 mW
-55 °C
Surface Mount
1
1
3
Tape & Reel (TR)
200 mW
550 mΩ
550 mΩ
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
20 V
6.010099 mg
1.3 mm
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹35.84
Total Price
₹107.52
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹108.40
₹108.40
10
₹23.09
₹230.90
25
₹23.14
₹578.57
50
₹23.14
₹1157.15
100
₹10.57
₹1056.68
500
₹10.57
₹5285.16
1000
₹10.15
₹10148.17
