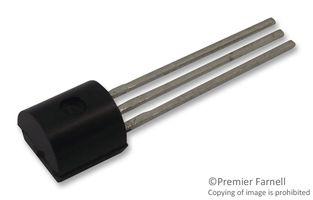

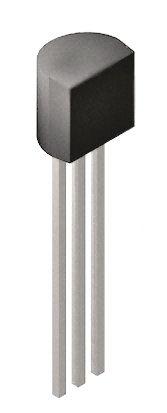

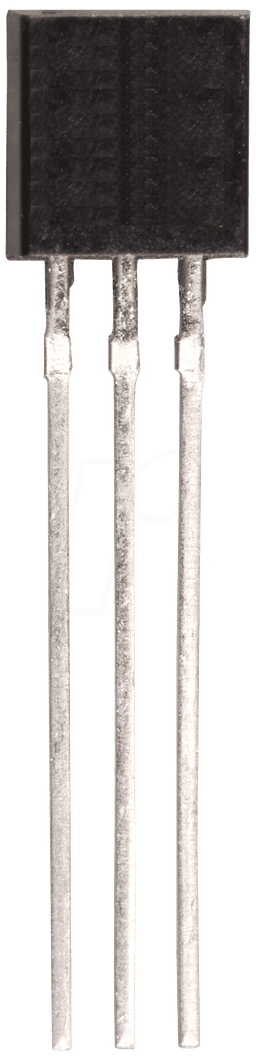

DN2535N3-G
Manufacturer
Microchip
Description
MOSFET Housing type: TO-92 Polarity: N Variants: Depletion mode Power dissipation: 1 W
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Case/Package
Contact Plating
Continuous Drain Current (ID)
Country of Origin
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description
2034-12-08
TO-92
Tin
120 mA
Philippines, Taiwan
350 V
25 Ω
350 V
Single
20 ns
20 V
5.33 mm
300 pF
Lead Free
5.21 mm
Production (Last Updated: 4 years ago)
150 °C
1 W
-55 °C
Through Hole
1
1
3
Bulk
1 W
No
25 Ω
No SVHC
15 ns
Compliant
8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
15 ns
10 ns
453.59237 mg
4.19 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹86.25
Total Price
₹172.50
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹172.50
₹172.50
10
₹86.61
₹866.08
25
₹73.27
₹1831.75
50
₹73.27
₹3663.50
100
₹67.55
₹6755.25
500
₹67.55
₹33776.26
1000
₹67.55
₹67552.52
