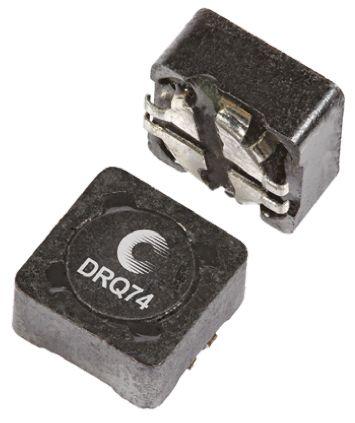

DRQ74-4R7-R
Manufacturer
Eaton
Description
WireWound SMD Inductor w/ Ferrite Core, 4.7 uH +/-20%WireWound 4.37A Idc
Datasheet
DownloadProduct Attributes
Type
Case/Package
Core Material
Current
Current Rating
DC Resistance (DCR)
DC Resistance (DCR) - Series
Depth
Height
Inductance
Inductance - Parallel
Inductance - Series
Lead Free
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Coils
Number of Pins
Number of Terminals
Packaging
REACH SVHC
Resistance
RoHS
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
3030
Ferrite
1.67 A
3.34 A
25.4 mΩ
102 mΩ
7.6 mm
4.45 mm
4.7 µH
5.18 µH
20.73 µH
Lead Free
7.5946 mm
Production (Last Updated: 7 months ago)
3.34 A
4.37 A
125 °C
Not
-40 °C
Surface Mount
2
2
4
2
Cut Tape
Yes
25.4 mΩ
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
100 kHz
Yes
SMD/SMT
100 kHz
20 %
1.360777 g
7.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹181.40
Total Price
₹181.40
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹181.40
₹181.40
10
₹123.69
₹1236.88
25
₹123.74
₹3093.53
50
₹123.72
₹6186.16
100
₹107.73
₹10772.66
500
₹102.29
₹51144.12
1000
₹100.58
₹100577.41
