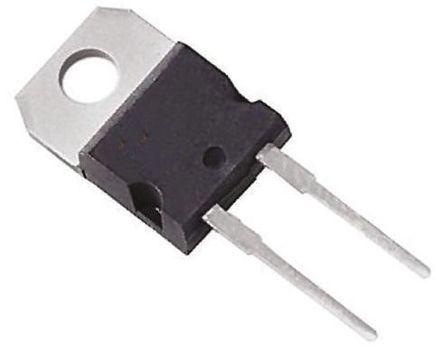

DSEP12-12B
Manufacturer
IXYS
Description
Rectifier Diode, 1 Phase, 1 Element, 15A, 1200V V(RRM), Silicon, TO-220AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Width
Description
15 A
TO-220-2
Compliant
Single
15 A
2.2 V
16.51 mm
Lead Free
10.66 mm
90 A
150 °C
15 A
95 W
1.2 kV
1.2 kV
90 A
-55 °C
Through Hole
1
2
2
90 A
100 µA
95 W
Yes
35 ns
35 ns
1.2 kV
1.2 kV
Compliant
4.82 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹269.95
Total Price
₹269.95
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹269.95
₹269.95
10
₹269.95
₹2699.53
25
₹269.99
₹6749.71
50
₹134.04
₹6702.07
100
₹116.41
₹11640.63
