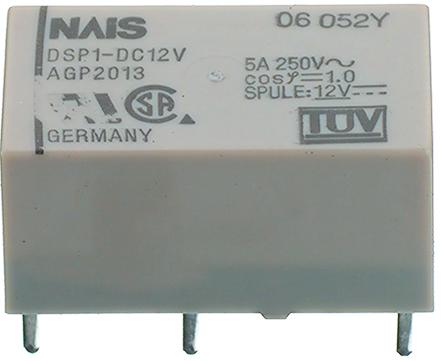

DSP1-DC24V-F
Manufacturer
Panasonic
Description
Electromechanical Relay SPST-NO/SPST-NC 5A 24VDC 1.92KOhm Through Hole
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Electrical Life
Height
Insulation Resistance
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Number of Pins
Number of Terminals
Operate Time
Packaging
Pitch
Power Consumption
Power Rating
Radiation Hardening
Ratings
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Sealable
Switching Capacity
Switching Current
Termination
Test Voltage
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
CSA, TUV, UL
DIP
12 mA
300 mW
1.92 kΩ
Non-Latching
19.2 V
5 A
Gold, Silver, Tin
30 mΩ
250 V
5 A
11 mm
100 kcycles
10.5 mm
1 GΩ
Lead Free
20.2 mm
Production (Last Updated: 7 months ago)
5 A
65 °C
250 V
125 V
-40 °C
6
6
10 ms
Box
2.54 mm
300 mW
300 mW
No
IP67
Yes
General Purpose
5 ms
10 ms
Compliant
WATER PROOF
150 W
5 A
PC Pin
3 kV
DPST
250 V
30 V
11 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹659.79
Total Price
₹659.79
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹659.79
₹659.79
10
₹499.11
₹4991.08
25
₹499.16
₹12479.03
50
₹477.82
₹23891.03
100
₹460.76
₹46075.68
500
₹499.81
₹249903.44
