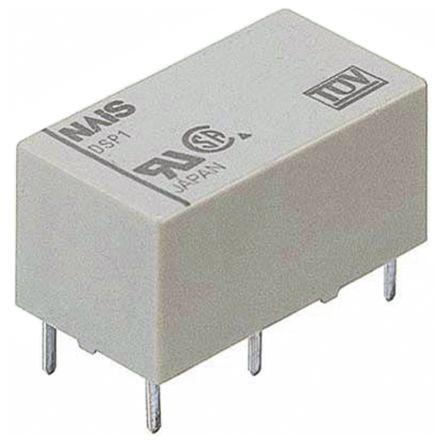

DSP1-L2-DC12V-F
Manufacturer
Panasonic
Description
Electromechanical Relay SPST-NO/SPST-NC 5A 12VDC 480Ohm Through Hole
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Contact Voltage Rating (AC)
Current Rating
Depth
Electrical Life
Height
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Number of Pins
Operate Time
Packaging
Power Consumption
Power Rating
Radiation Hardening
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Sealable
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
CSA, TUV, UL
DIP
25 mA
300 mW
480 Ω
Latching, Dual Coil
9.6 V
5 A
Gold, Silver, Tin
380 V
5 A
11 mm
100 kcycles
10.5 mm
Lead Free
20.2 mm
Production (Last Updated: 7 months ago)
5 A
65 °C
250 V
125 V
-40 °C
8
10 ms
Box
300 mW
300 mW
No
Yes
General Purpose
5 ms
10 ms
Compliant
WATER PROOF
PC Pin
DPST
250 V
30 V
4.5 g
11 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹843.85
Total Price
₹843.85
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹843.85
₹843.85
10
₹791.39
₹7913.88
25
₹791.42
₹19785.59
50
₹765.80
₹38289.84
100
₹632.47
₹63247.02
