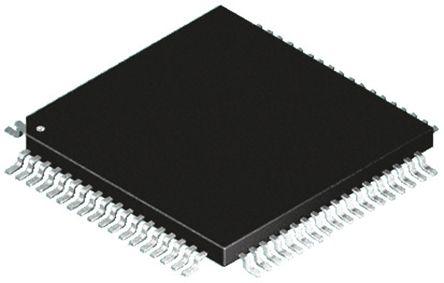

DSPIC30F6010A-20E/PF
Manufacturer
Microchip
Description
DSPIC30F6010A-20E/PF; 16bit PIC Microcontroller; 25MHz; 144kb Flash; 80-Pin TQFP
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Case/Package
Core Architecture
Country of Origin
Data Bus Width
Density
Frequency
Height
Interface
Introduction Date
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of A/D Converters
Number of ADC Channels
Number of Bits
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of PWM Channels
Number of SPI Channels
Number of Timers/Counters
Number of UART Channels
Packaging
Peripherals
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Watchdog Timer
Width
Description
2034-02-06
TQFP
dsPIC
Philippines
16 b
1.1 Mb
20 MHz
1.2 mm
CAN, I2C, SPI, UART, USART
2006-02-06
Lead Free
14 mm
Production (Last Updated: 4 years ago)
20 MHz
125 °C
5.5 V
144 kB
FLASH
-40 °C
3 V
Surface Mount
1
16
16
1
68
80
68
8
2
5
2
Bulk
I2C, PWM
No
No
Compliant
8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000
Yes
14 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1848.09
Total Price
₹1848.09
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1848.09
₹1848.09
10
₹1847.82
₹18478.22
25
₹1676.55
₹41913.75
50
₹1676.55
₹83827.49
100
₹1620.00
₹161999.68
500
₹1620.00
₹809997.54
1000
₹1620.00
₹1619995.08
