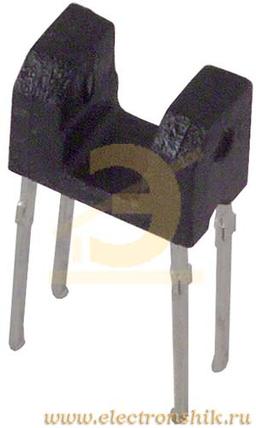

EE-SX1109
Manufacturer
Omron
Description
Sensor, Phototransistor, Transmissive Sensing Mode, Photomicro, Red LED
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Fall Time
Forward Current
Forward Voltage
Height
Input Current
Lead Free
Length
Max Breakdown Voltage
Max Collector Current
Max Input Current
Max Operating Temperature
Max Output Current
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Output Configuration
Output Type
Output Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Response Time
Reverse Breakdown Voltage
Reverse Voltage (DC)
Rise Time
RoHS
Sensing Distance
Termination
Turn-Off Delay Time
Turn-On Delay Time
Wavelength
Width
Description
85 °C
SMD/SMT
20 V
100 mV
20 V
10 µs
25 mA
1.1 V
5 mm
5 mA
Lead Free
6 mm
20 V
20 mA
5 mA
85 °C
20 mA
75 mW
-30 °C
PCB, Surface Mount
1
1
4
Phototransistor
Phototransistor
20 V
Cut Tape
75 mW
No
Unknown
10 µs
5 V
5 V
10 µs
Compliant
2.9972 mm
Solder
10 µs
10 µs
900 nm
4 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
