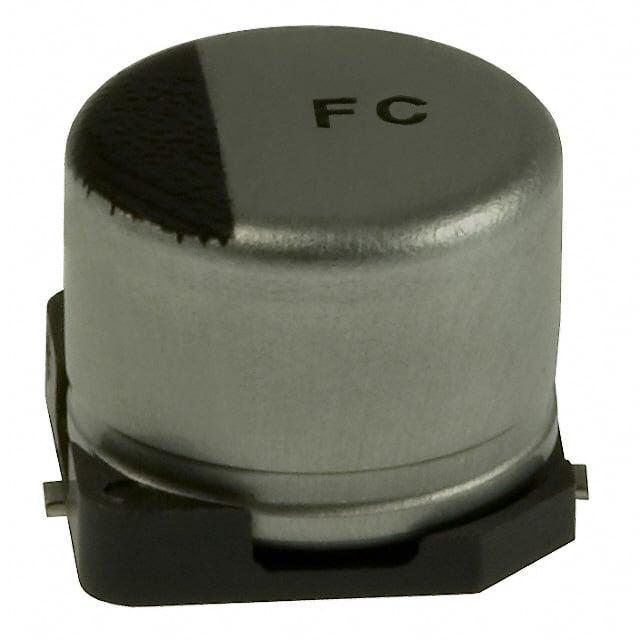

EEE-FC1E330P
Manufacturer
Panasonic Industry
Description
33 F 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105C
Datasheet
DownloadProduct Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Impedance
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
33 µF
±20%
25 V
1000 Hrs @ 105°C
-40°C ~ 105°C
Polar
AEC-Q200
Automotive
105 mA @ 120 Hz
140 mA @ 100 kHz
1 Ohms
0.248" Dia (6.30mm)
0.213" (5.40mm)
0.260" L x 0.260" W (6.60mm x 6.60mm)
Surface Mount
Radial, Can - SMD
₹56.96
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹44.29
₹442.86
25
₹44.30
₹1107.61
50
₹26.19
₹1309.31
100
₹23.20
₹2319.81
500
₹18.17
₹9084.47
1000
₹18.17
₹18168.94
Product Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Impedance
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
33 µF
±20%
25 V
1000 Hrs @ 105°C
-40°C ~ 105°C
Polar
AEC-Q200
Automotive
105 mA @ 120 Hz
140 mA @ 100 kHz
1 Ohms
0.248" Dia (6.30mm)
0.213" (5.40mm)
0.260" L x 0.260" W (6.60mm x 6.60mm)
Surface Mount
Radial, Can - SMD
