EEE-HA2A220P
Manufacturer
Panasonic Industry
Description

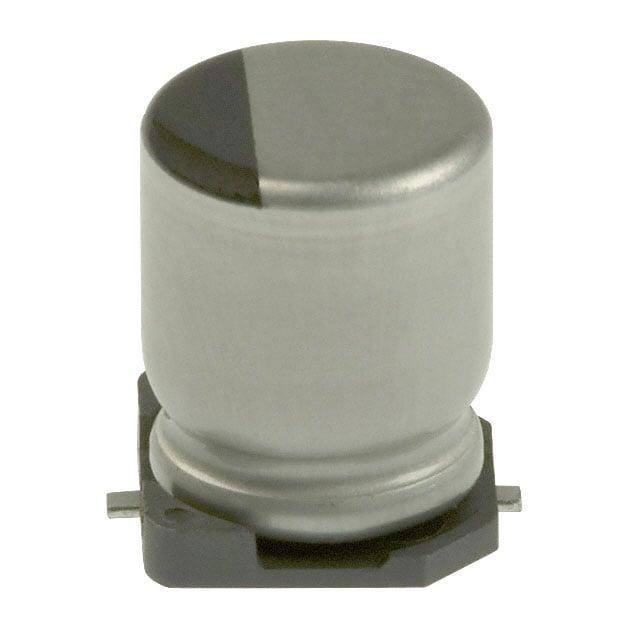

PANASONIC - EEEHA2A220P - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 22 F, 100 V, 1000 hours @ 105C, Polar
Datasheet
DownloadProduct Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
22 µF
±20%
100 V
1000 Hrs @ 105°C
-40°C ~ 105°C
Polar
AEC-Q200
Automotive
60 mA @ 120 Hz
102 mA @ 10 kHz
0.394" Dia (10.00mm)
0.402" (10.20mm)
0.406" L x 0.406" W (10.30mm x 10.30mm)
Surface Mount
Radial, Can - SMD
₹107.93
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹107.93
₹107.93
10
₹57.35
₹573.48
25
₹57.35
₹1433.70
50
₹53.80
₹2690.00
100
₹50.24
₹5023.81
500
₹39.46
₹19729.71
1000
₹39.46
₹39459.42
Product Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
22 µF
±20%
100 V
1000 Hrs @ 105°C
-40°C ~ 105°C
Polar
AEC-Q200
Automotive
60 mA @ 120 Hz
102 mA @ 10 kHz
0.394" Dia (10.00mm)
0.402" (10.20mm)
0.406" L x 0.406" W (10.30mm x 10.30mm)
Surface Mount
Radial, Can - SMD
