EEEFK1V101P
Manufacturer
Panasonic Industry
Description

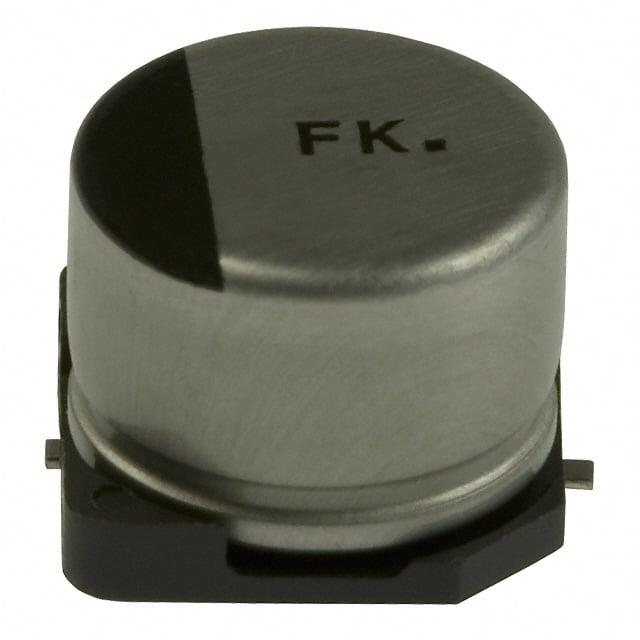

PANASONIC - EEEFK1V101P - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 100 F, 35 V, 2000 hours @ 105C, Polar
Datasheet
DownloadProduct Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Impedance
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
100 µF
±20%
35 V
2000 Hrs @ 105°C
-55°C ~ 105°C
Polar
AEC-Q200
Automotive
450 mA @ 120 Hz
600 mA @ 100 kHz
160 mOhms
0.315" Dia (8.00mm)
0.413" (10.50mm)
0.327" L x 0.327" W (8.30mm x 8.30mm)
Surface Mount
Radial, Can - SMD
₹136.37
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹136.37
₹136.37
10
₹82.45
₹824.54
25
₹82.45
₹2061.35
50
₹82.45
₹4122.70
100
₹59.52
₹5952.26
500
₹49.06
₹24532.08
1000
₹49.06
₹49064.15
Product Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Impedance
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
100 µF
±20%
35 V
2000 Hrs @ 105°C
-55°C ~ 105°C
Polar
AEC-Q200
Automotive
450 mA @ 120 Hz
600 mA @ 100 kHz
160 mOhms
0.315" Dia (8.00mm)
0.413" (10.50mm)
0.327" L x 0.327" W (8.30mm x 8.30mm)
Surface Mount
Radial, Can - SMD
