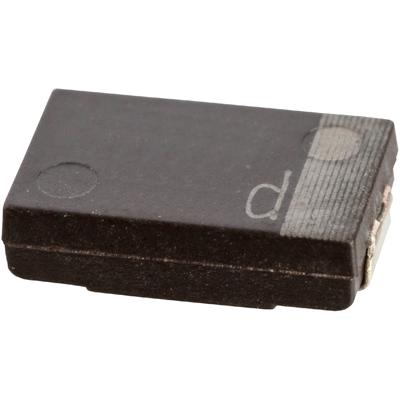

EEF-CX1E220R
Manufacturer
Panasonic
Description
Conductive Polymer Aluminum Electrolytic Capacitor, 22 F, -55 to 105 C
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
Case Code (Imperial)
Case Code (Metric)
Depth
Dielectric Material
Dissipation Factor
ESR (Equivalent Series Resistance)
Height
Height - Seated (Max)
Leakage Current
Length
Life (Hours)
Lifecycle Status
Material
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Radiation Hardening
REACH SVHC
Ripple Current
Ripple Current (AC)
RoHS
Schedule B
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Weight
Width
Description
22 µF
2917
2917
7343
4.3 mm
Aluminium
6 %
40 mΩ
2 mm
2.1082 mm
165 µA
7.3 mm
2000 hours
Production (Last Updated: 4 years ago)
Polymer
105 °C
-55 °C
PCB , Surface Mount
Cut Tape
No
Unknown
3.2 A
3 A
Compliant
8532290040
SMD/SMT
20 %
25 V
25 V
25 V
130.010913 mg
4.2926 mm
₹158.29
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹158.29
₹158.29
10
₹89.12
₹891.21
25
₹89.08
₹2227.11
50
₹85.25
₹4262.35
100
₹85.25
₹8524.69
500
₹53.87
₹26937.25
1000
₹53.87
₹53874.50
