EEHZA1J560P
Manufacturer
Panasonic Industry
Description

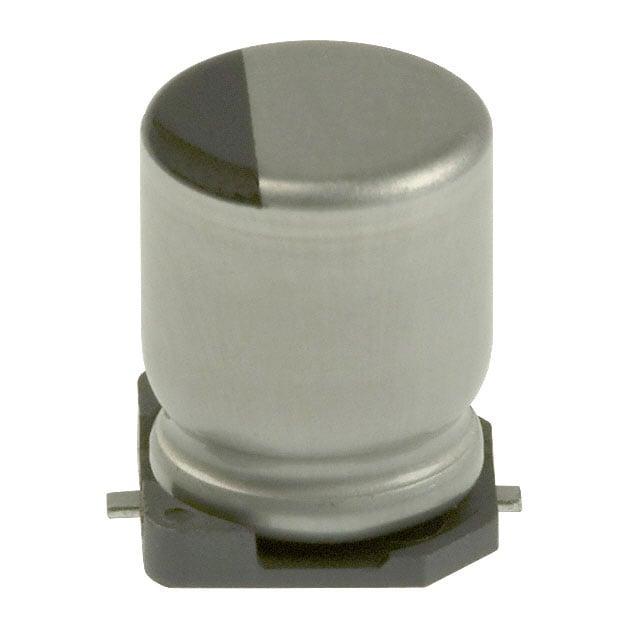

PANASONIC - EEHZA1J560P - Hybrid Aluminium Electrolytic Capacitor, Hybrid Polymer, 56 F, 20%, 63 V, Radial Can - SMD
Datasheet
DownloadProduct Attributes
Type
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
Hybrid
56 µF
±20%
63 V
30mOhm
10000 Hrs @ 105°C
-55°C ~ 105°C
AEC-Q200
Automotive
270 mA @ 100 Hz
1.8 A @ 100 kHz
0.394" Dia (10.00mm)
0.413" (10.50mm)
0.406" L x 0.406" W (10.30mm x 10.30mm)
Surface Mount
Radial, Can - SMD
₹398.91
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹398.91
₹398.91
10
₹272.75
₹2727.48
25
₹272.75
₹6818.69
50
₹216.67
₹10833.33
100
₹198.82
₹19881.78
500
₹160.59
₹80292.86
1000
₹147.85
₹147846.11
Product Attributes
Type
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
Hybrid
56 µF
±20%
63 V
30mOhm
10000 Hrs @ 105°C
-55°C ~ 105°C
AEC-Q200
Automotive
270 mA @ 100 Hz
1.8 A @ 100 kHz
0.394" Dia (10.00mm)
0.413" (10.50mm)
0.406" L x 0.406" W (10.30mm x 10.30mm)
Surface Mount
Radial, Can - SMD
