EEHZA1V151P
Manufacturer
Panasonic Industry
Description

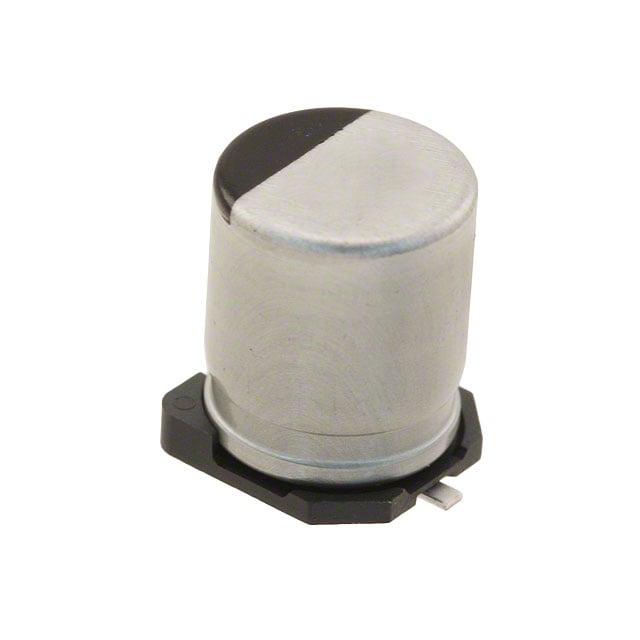

PANASONIC - EEHZA1V151P - Hybrid Aluminium Electrolytic Capacitor, Hybrid Polymer, 150 F, 20%, 35 V, Radial Can - SMD
Datasheet
DownloadProduct Attributes
Type
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
Hybrid
150 µF
±20%
35 V
27mOhm
10000 Hrs @ 105°C
-55°C ~ 105°C
AEC-Q200
Automotive
345 mA @ 100 Hz
2.3 A @ 100 kHz
0.315" Dia (8.00mm)
0.413" (10.50mm)
0.327" L x 0.327" W (8.30mm x 8.30mm)
Surface Mount
Radial, Can - SMD
₹219.41
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹219.41
₹219.41
10
₹142.40
₹1424.04
25
₹142.40
₹3560.09
50
₹123.94
₹6197.06
100
₹121.47
₹12147.32
500
₹116.66
₹58328.72
1000
₹116.66
₹116657.43
Product Attributes
Type
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
Hybrid
150 µF
±20%
35 V
27mOhm
10000 Hrs @ 105°C
-55°C ~ 105°C
AEC-Q200
Automotive
345 mA @ 100 Hz
2.3 A @ 100 kHz
0.315" Dia (8.00mm)
0.413" (10.50mm)
0.327" L x 0.327" W (8.30mm x 8.30mm)
Surface Mount
Radial, Can - SMD
