EEU-FM1E101B
Manufacturer
Panasonic Industry
Description

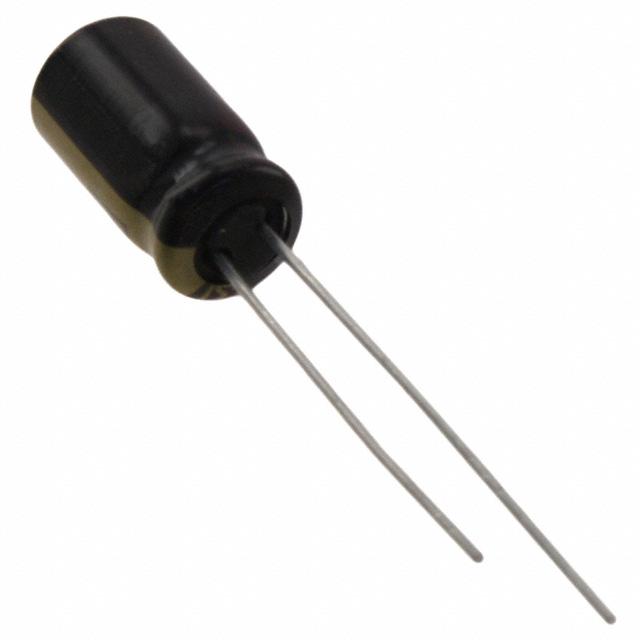

PANASONIC - EEUFM1E101B - Electrolytic Capacitor, 100 F, 25 V, 20%, Radial Leaded, 2000 hours @ 105C, Polar
Datasheet
DownloadProduct Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Impedance
Lead Spacing
Size / Dimension
Height - Seated (Max)
Mounting Type
Case/Package
Description
100 µF
±20%
25 V
2000 Hrs @ 105°C
-40°C ~ 105°C
Polar
General Purpose
318.5 mA @ 120 Hz
455 mA @ 100 kHz
130 mOhms
0.197" (5.00mm)
0.248" Dia (6.30mm)
0.500" (12.70mm)
Through Hole
Radial, Can
₹53.45
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹24.49
₹244.93
25
₹24.49
₹612.30
50
₹24.49
₹1224.61
100
₹21.76
₹2175.74
500
₹16.90
₹8450.83
1000
₹15.41
₹15407.58
Product Attributes
Type
Capacitance
Tolerance
Voltage - Rated
Lifetime @ Temp.
Max Operating Temperature
Polarization
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Impedance
Lead Spacing
Size / Dimension
Height - Seated (Max)
Mounting Type
Case/Package
Description
100 µF
±20%
25 V
2000 Hrs @ 105°C
-40°C ~ 105°C
Polar
General Purpose
318.5 mA @ 120 Hz
455 mA @ 100 kHz
130 mOhms
0.197" (5.00mm)
0.248" Dia (6.30mm)
0.500" (12.70mm)
Through Hole
Radial, Can
