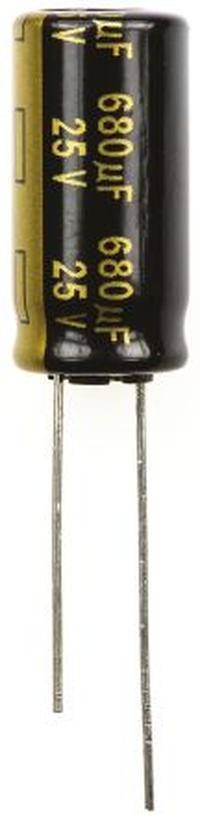

EEUFM1E681

Manufacturer

Panasonic

Description

Radial Can ALUMINUM ELECTROLYTIC CAPACITOR FM 25V 680muF 20% 0.394Dia 10.00mm

Datasheet

download datasheetDownload

Product Attributes

Type

Capacitance

Case/Package

Diameter

Dielectric Material

Dissipation Factor

ESR (Equivalent Series Resistance)

Height

Height - Seated (Max)

Impedance

Lead Diameter

Lead Free

Lead Pitch

Leakage Current

Length

Life (Hours)

Lifecycle Status

Max Operating Temperature

Min Operating Temperature

Mount

Number of Pins

Packaging

Polarity

Radiation Hardening

REACH SVHC

Ripple Current

RoHS

Schedule B

Termination

Tolerance

Voltage

Voltage Rating

Voltage Rating (DC)

Description

680 µF

Radial

10 mm

Aluminium

14 %

19 mΩ

22 mm

21.9964 mm

19 mΩ

600 µm

Lead Free

5 mm

170 µA

20 mm

5000 hours

Production (Last Updated: 3 years ago)

105 °C

-40 °C

PCB, Through Hole

2

Bulk

Polar

No

Yes

2.18 A

Compliant

8532220020, 8532220020|8532220020|8532220020|8532220020|8532220020

Radial

20 %

25 V

25 V

25 V
