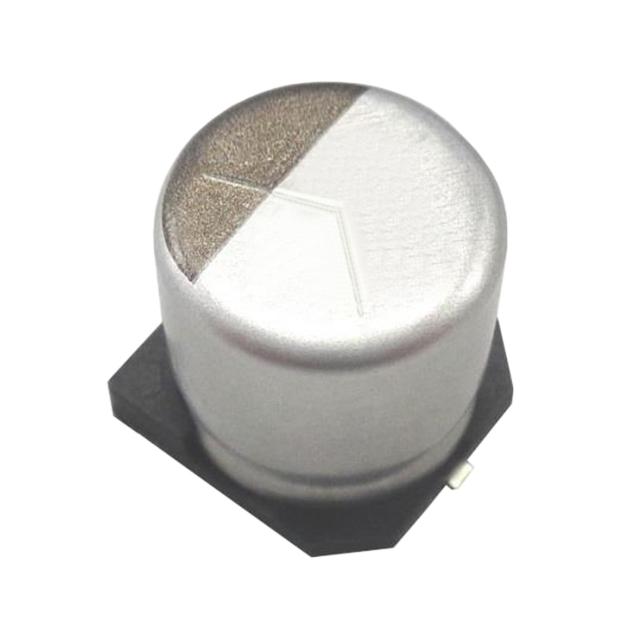

EMZS250ARA102MJA0G
Manufacturer
Chemi-Con
Description
1000 F 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 60mOhm @ 100kHz 2000 Hrs @ 105C
Datasheet
DownloadProduct Attributes
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Polarization
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
1000 µF
±20%
25 V
60mOhm @ 100kHz
2000 Hrs @ 105°C
-55°C ~ 105°C
Polar
AEC-Q200
Automotive
714 mA @ 120 Hz
1.19 A @ 100 kHz
0.394" Dia (10.00mm)
0.413" (10.50mm)
0.406" L x 0.406" W (10.30mm x 10.30mm)
Surface Mount
Radial, Can - SMD
₹228.75
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹228.75
₹228.75
10
₹149.15
₹1491.45
25
₹149.18
₹3729.54
50
₹115.95
₹5797.44
100
₹105.44
₹10543.55
500
₹87.39
₹43693.08
1000
₹81.70
₹81704.01
Product Attributes
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Polarization
Ratings
Applications
Ripple Current (AC)
Ripple Current @ High Frequency
Size / Dimension
Height - Seated (Max)
Surface Mount Land Size
Mounting Type
Case/Package
Description
1000 µF
±20%
25 V
60mOhm @ 100kHz
2000 Hrs @ 105°C
-55°C ~ 105°C
Polar
AEC-Q200
Automotive
714 mA @ 120 Hz
1.19 A @ 100 kHz
0.394" Dia (10.00mm)
0.413" (10.50mm)
0.406" L x 0.406" W (10.30mm x 10.30mm)
Surface Mount
Radial, Can - SMD
