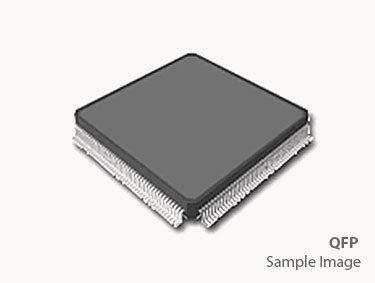

EPM1270T144A5N
Manufacturer
Intel / Altera
Description
CPLD MAX II Family 980 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V Automotive 144-Pin TQFP
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Frequency
Height - Seated (Max)
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of I/Os
Number of Inputs
Number of Logic Blocks (LABs)
Number of Logic Elements/Cells
Number of Macrocells
Number of Outputs
Number of Pins
Number of Programmable I/O
Number of Terminals
Operating Supply Current
Operating Supply Voltage
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Speed Grade
Terminal Pitch
Turn-On Delay Time
Width
Description
TQFP
Compliant
1.8797 GHz
1.6 mm
20 mm
Production (Last Updated: 8 months ago)
304 MHz
125 °C
2.625 V
1 kB
FLASH
-40 °C
2.375 V
Surface Mount
55 mA
116
116
127
1270
980
116
144
116
144
55 mA
2.5 V
10 ns
No
Yes
Compliant
5
500 µm
10 ns
20 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹10997.63
Total Price
₹10997.63
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹10997.63
₹10997.63
10
₹10997.36
₹109973.59
25
₹10536.66
₹263416.61
50
₹10536.66
₹526833.22
100
₹9906.32
₹990631.93
