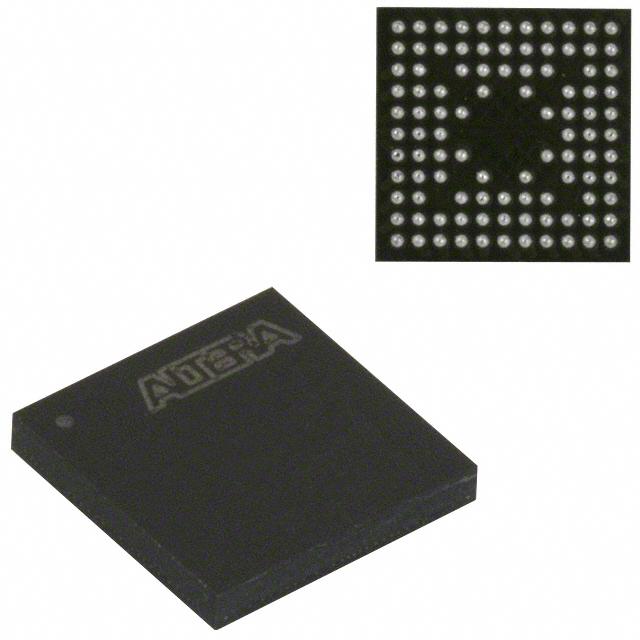

EPM570ZM100I8N
Manufacturer
Intel / Altera
Description
CPLD MAX II Family 440 Macro Cells 118.3MHz 0.18um Technology 1.8V 100-Pin Micro FBGA
Datasheet
DownloadProduct Attributes
Type
Case/Package
Frequency
Height - Seated (Max)
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of I/Os
Number of Inputs
Number of Logic Blocks (LABs)
Number of Logic Elements/Cells
Number of Macrocells
Number of Outputs
Number of Pins
Number of Programmable I/O
Number of Terminals
Operating Supply Current
Operating Supply Voltage
Propagation Delay
Radiation Hardening
RoHS
Terminal Pitch
Turn-On Delay Time
Width
Description
TFBGA
1.4749 GHz
1.2 mm
6 mm
Obsolete (Last Updated: 8 months ago)
152 MHz
100 °C
1.89 V
1 kB
FLASH
-40 °C
1.71 V
Surface Mount
40 mA
76
76
57
570
440
76
100
76
100
40 mA
1.8 V
17.7 ns
No
Compliant
500 µm
14 ns
6 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹5485.52
Total Price
₹5485.52
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹5485.52
₹5485.52
10
₹5485.61
₹54856.08
25
₹5485.59
₹137139.75
50
₹5485.55
₹274277.74
100
₹5485.56
₹548556.37
