EPM7256AETC144-5
Manufacturer
Intel / Altera
Description

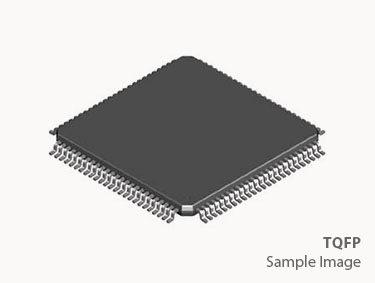

CPLD MAX 7000A Family 5K Gates 256 Macro Cells 172.4MHz CMOS Technology 3.3V 144-Pin TQFP
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Clock Rate
Frequency
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of Gates
Number of I/Os
Number of Logic Blocks (LABs)
Number of Logic Elements/Cells
Number of Macrocells
Number of Pins
Number of Programmable I/O
Number of Terminals
Operating Supply Voltage
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Speed Grade
Terminal Pitch
Turn-On Delay Time
Width
Description
TQFP
Non-Compliant
172.4 MHz
250 MHz
1.6 mm
Contains Lead
20 mm
Obsolete (Last Updated: 7 months ago)
172.4 MHz
70 °C
3.6 V
EEPROM
0 °C
3 V
Surface Mount
5000
120
16
16
256
144
36
144
3.3 V
5.5 ns
No
Yes
Non-Compliant
5
500 µm
5.5 ns
20 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
