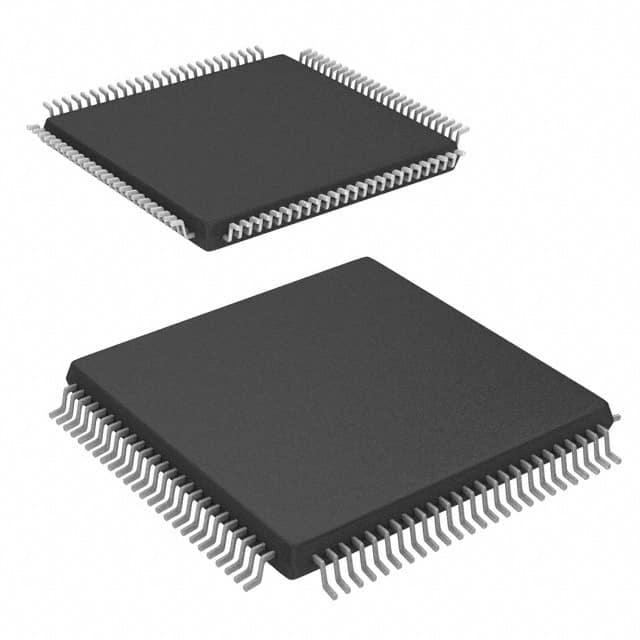

EPM7256BTC100-10N
Manufacturer
Intel / Altera
Description
CPLD MAX 7000B Family 5K Gates 256 Macro Cells 125MHz CMOS Technology 2.5 Volt 100-Pin TQFP
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Clock Rate
Frequency
Height - Seated (Max)
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of Gates
Number of I/Os
Number of Logic Blocks (LABs)
Number of Logic Elements/Cells
Number of Macrocells
Number of Pins
Number of Programmable I/O
Number of Terminals
Operating Supply Voltage
Propagation Delay
REACH SVHC
RoHS
Schedule B
Speed Grade
Terminal Pitch
Turn-On Delay Time
Width
Description
TQFP
Compliant
188.7 MHz
125 MHz
1.27 mm
14 mm
Obsolete (Last Updated: 7 months ago)
188.7 MHz
70 °C
2.625 V
EEPROM
0 °C
2.375 V
Surface Mount
5000
84
16
16
256
100
84
100
2.5 V
5 ns
Yes
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
10
500 µm
10 ns
14 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
