ERJ-U03F56R0V
Manufacturer
Panasonic
Description

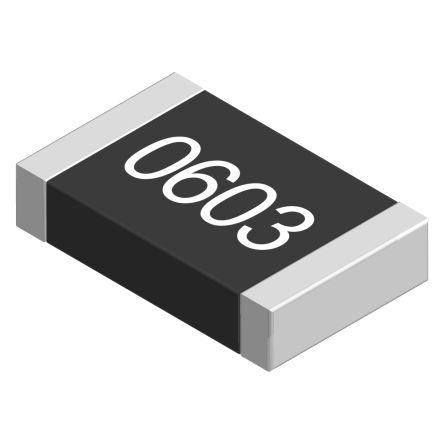

SMD Chip Resistor, 0603 [1608 Metric], 56 ohm, 75 V, Thick Film, 100 mW
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Current Rating
Depth
Height
Length
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Packaging
Power Dissipation
Power Rating
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Weight
Width
Working Voltage
Description
0603
0603
1608
Thick Film
Tin
1 A
800 µm
450 µm
1.6 mm
Production (Last Updated: 9 months ago)
155 °C
-55 °C
Surface Mount
2
Cut Tape
100 mW
100 mW
Yes
56 Ω
Compliant
100 ppm/°C
SMD/SMT
1 %
75 V
75 V
2.012816 mg
800 µm
75 V
₹13.72
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.10
₹101.02
25
₹4.23
₹105.68
50
₹4.21
₹210.45
100
₹3.56
₹355.94
500
₹2.55
₹1273.68
1000
₹2.25
₹2251.82
