ES1DHE3_A/H
Manufacturer
Vishay
Description

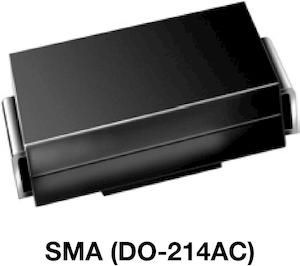

Rectifier Diode, 1 Phase, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Description
1 A
10 pF
SMA
Tin
Single
1 A
865 mV
2.29 mm
Production (Last Updated: 9 months ago)
30 A
150 °C
150 °C
1 A
200 V
200 V
-55 °C
Surface Mount
1
2
2
Tape & Reel (TR)
30 A
5 µA
No
15 ns
200 V
200 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹35.84
Total Price
₹107.52
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹108.40
₹108.40
10
₹23.18
₹231.78
25
₹23.20
₹579.89
50
₹23.20
₹1159.79
100
₹15.68
₹1567.55
500
₹14.52
₹7259.95
1000
₹7.73
₹7732.53
