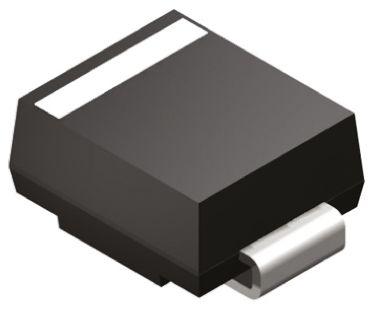

ES2G-13-F

Manufacturer

Diodes Inc.

Description

ES2G Series 400 V 2 A Surface Mount Super-Fast Rectifier - DO-214AA

Datasheet

download datasheetDownload

Product Attributes

Type

Average Rectified Current

Capacitance

Case/Package

Current Rating

Element Configuration

Forward Current

Forward Voltage

Height

Lead Free

Length

Max Operating Temperature

Max Repetitive Reverse Voltage (Vrrm)

Max Reverse Voltage (DC)

Max Surge Current

Min Operating Temperature

Mount

Number of Pins

Output Current

Packaging

Peak Non-Repetitive Surge Current

Peak Reverse Current

Polarity

Radiation Hardening

Recovery Time

Reverse Recovery Time

Reverse Voltage (DC)

RoHS

Schedule B

Voltage Rating (DC)

Weight

Width

Description

2 A

25 pF

SMB

2 A

Single

2 A

1.25 V

2.42 mm

Lead Free

4.57 mm

150 °C

400 V

400 V

50 A

-55 °C

Stud, Surface Mount

2

2 A

Cut Tape

50 A

5 µA

Standard

No

35 ns

35 ns

400 V

Compliant

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

400 V

92.986436 mg

3.94 mm

In Stock


Quantity

MOQ : 2

decrement quantity
increment quantity

Per Unit Price

₹55.13

Total Price

₹110.26


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

110.26

110.26

10

26.02

260.22

25

26.02

650.56

50

21.83

1091.40

100

16.56

1655.69

500

11.92

5959.90

1000

11.92

11919.80
