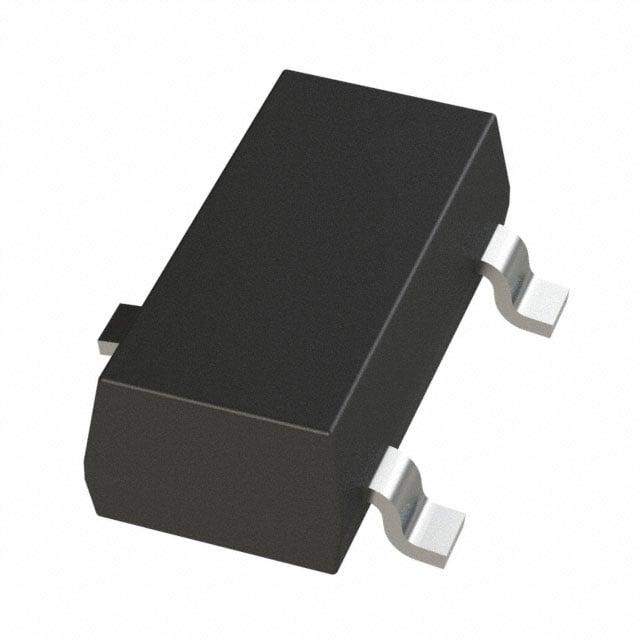

ESDS552DBZR
Manufacturer
Texas Instruments
Description
ESD Protection Diodes / TVS Diodes 12-V 2-CH TVS PROTEC TION DIODE ARRAY
Datasheet
DownloadProduct Attributes
Type
Type
Bidirectional Channels
Reverse Standoff Voltage
Min Breakdown Voltage
Clamping Voltage
Current - Peak Pulse (10/1000µs)
Peak Pulse Power
Power Line Protection
Applications
Capacitance @ Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Zener
2
12V (Max)
13.2V
23.5V
25A (8/20µs)
500W
No
General Purpose
9.5pF @ 1MHz
-40°C ~ 125°C (TA)
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3
₹94.31
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹43.85
₹438.48
25
₹43.85
₹1096.20
50
₹43.85
₹2192.41
100
₹37.08
₹3708.49
500
₹28.16
₹14080.27
1000
₹26.64
₹26639.78
Product Attributes
Type
Type
Bidirectional Channels
Reverse Standoff Voltage
Min Breakdown Voltage
Clamping Voltage
Current - Peak Pulse (10/1000µs)
Peak Pulse Power
Power Line Protection
Applications
Capacitance @ Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Zener
2
12V (Max)
13.2V
23.5V
25A (8/20µs)
500W
No
General Purpose
9.5pF @ 1MHz
-40°C ~ 125°C (TA)
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3
