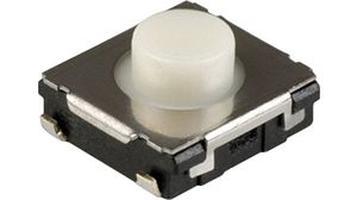

EVQ-Q2D03W
Manufacturer
Panasonic
Description
Switch Tactile ON OFF SPST Round Button J-Bend 0.02A 15VDC 0.5N SMD Embossed T/R
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Case/Package
Color
Contact Current Rating
Contact Plating
Contact Resistance
Current Rating
Depth
Electrical Life
Height
Illumination Type
Lead Free
Life (Cycles)
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Radiation Hardening
REACH SVHC
RoHS
Switch Function
Switch Travel
Termination
Thickness
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
1.3 mm
SMD/SMT
White
20 mA
Gold, Silver
100 mΩ
20 mA
6.6 mm
2 Mcycles
3.3 mm
Illuminated, Non-Illuminated
Lead Free
2 Mcycles
20 mA
85 °C
250 V
15 V
2 Mcycles
-40 °C
Surface Mount
2
500 mN
No
No
Compliant
Off-Mom
200 µm
SMD/SMT
1.8 mm
SPST
250 V
15 V
6 mm
In Stock
Quantity
MOQ : 4
Per Unit Price
₹26.68
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹21.43
₹214.30
25
₹21.43
₹535.74
50
₹21.45
₹1072.38
100
₹18.88
₹1887.77
500
₹18.27
₹9132.97
1000
₹17.49
₹17491.45
