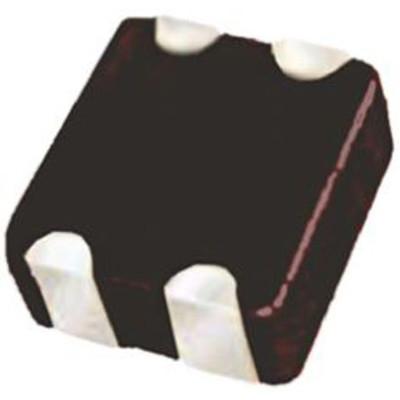

EXC-28CH500U
Manufacturer
Panasonic
Description
0804 Common mode noise filter array 50 ohm +/- 25% at 100 MHz, Reel 7
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
DC Resistance (DCR)
Depth
Frequency
Height
Impedance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Number of Pins
Radiation Hardening
RoHS
Termination
Test Frequency
Tolerance
Voltage Rating (DC)
Width
Description
0804
0804
2010
1.5 Ω
1.15 mm
100 MHz
609.6 µm
50 Ω
2.0066 mm
Production (Last Updated: 4 years ago)
160 mA
160 mA
85 °C
-40 °C
Surface Mount
4
8
No
Compliant
SMD/SMT
100 MHz
25 %
5 V
990.6 µm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹52.88
Total Price
₹105.76
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.76
₹105.76
10
₹41.24
₹412.45
25
₹41.24
₹1031.12
50
₹41.23
₹2061.36
100
₹36.36
₹3636.24
500
₹36.36
₹18182.10
1000
₹30.76
₹30760.90
Product Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
DC Resistance (DCR)
Depth
Frequency
Height
Impedance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Number of Pins
Radiation Hardening
RoHS
Termination
Test Frequency
Tolerance
Voltage Rating (DC)
Width
Description
0804
0804
2010
1.5 Ω
1.15 mm
100 MHz
609.6 µm
50 Ω
2.0066 mm
Production (Last Updated: 4 years ago)
160 mA
160 mA
85 °C
-40 °C
Surface Mount
4
8
No
Compliant
SMD/SMT
100 MHz
25 %
5 V
990.6 µm
